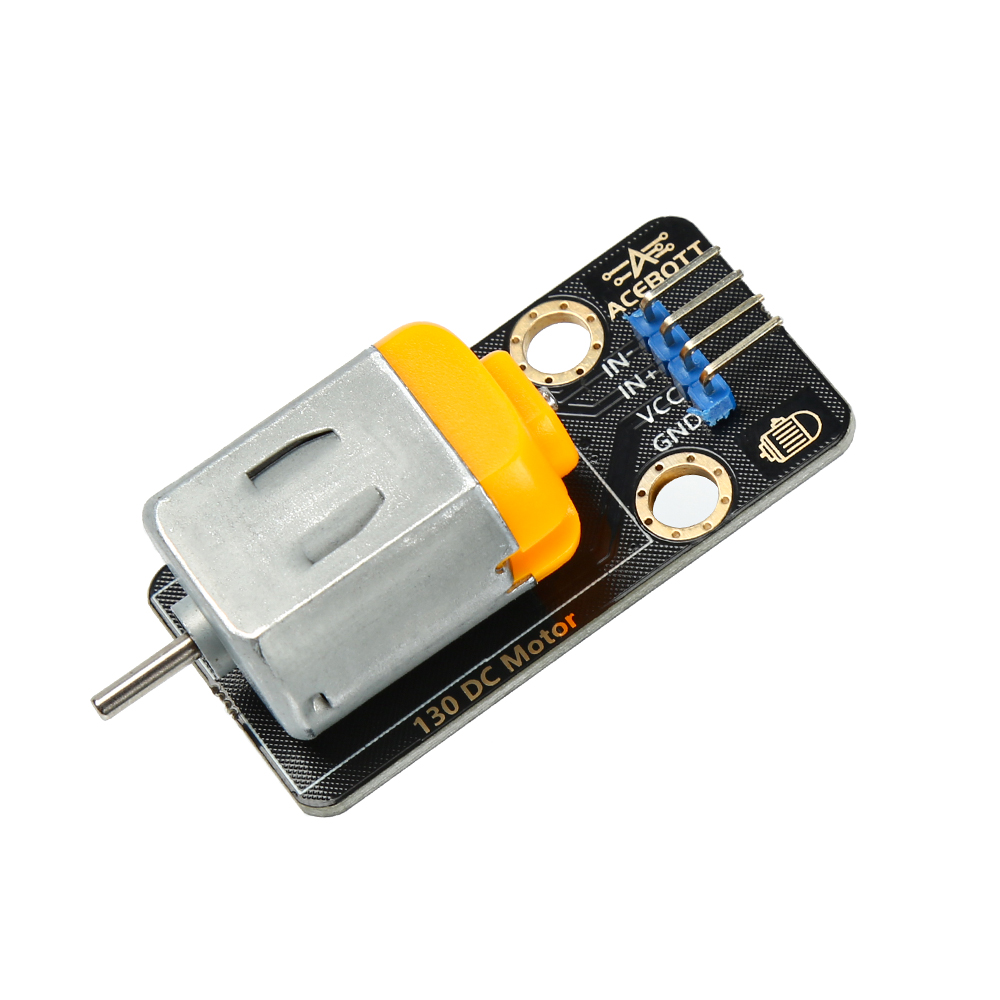

ACEBOTT 130 DC Motor Module for FanEasy-Plug

1.Product Introduction

The 130 motor module is a common DC motor module that can convert electrical energy into mechanical energy to make your equipment move.

The 130 motor module controls the rotation direction and speed of the motor by controlling the input signal. There will be two control pins on the module, one for forward turn (IN+) and one for reverse control (IN-). By applying different level signals (high or low) to these pins, operations such as forward, backward, and stop can be achieved.

Application reference: small robot, intelligent car, fan and other projects.

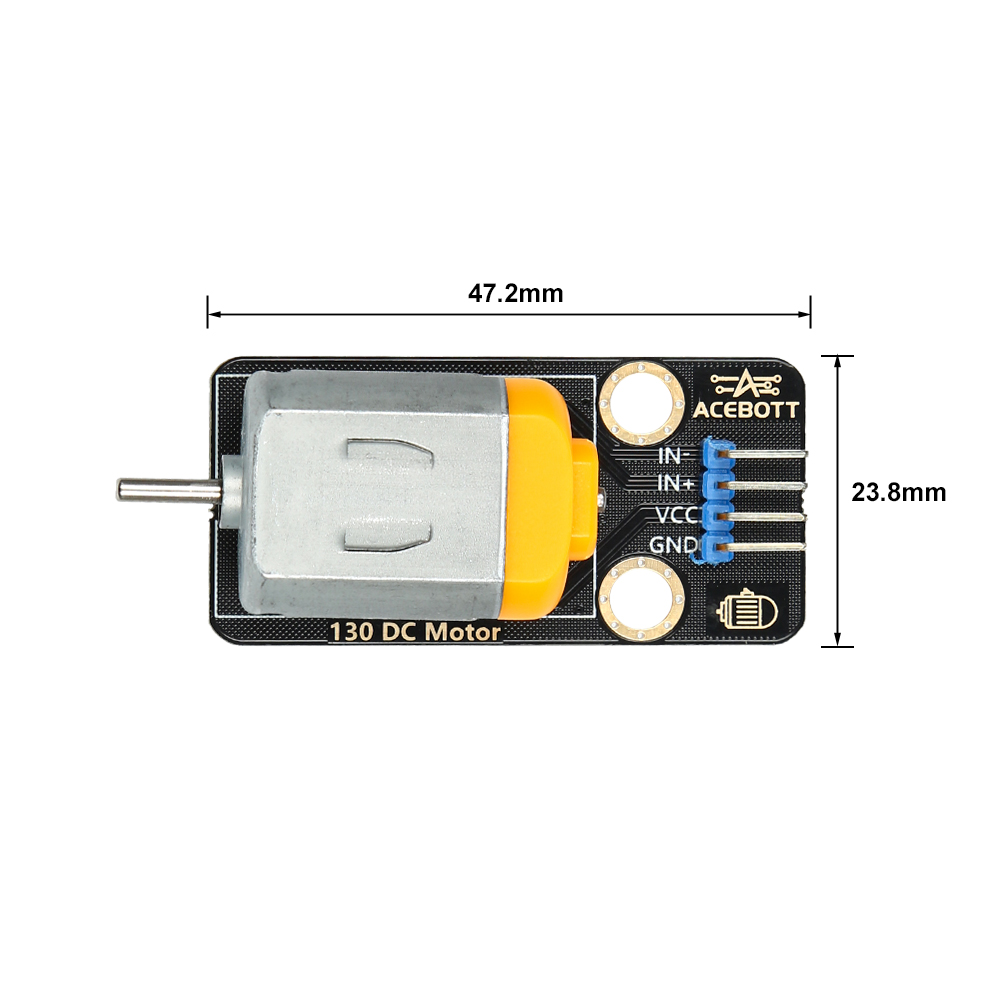

2.Parameter Specification

3.Wiring Diagram

4.Sample Code

 1//www.acebott.com
 2void setup(){
 3  pinMode(5, OUTPUT);//Set pin 5 to output mode
 4  pinMode(6, OUTPUT);//Set pin 6 to output mode
 5}
 6void loop(){
 7  digitalWrite(5,HIGH);
 8  digitalWrite(6,LOW);//130 DC motor module is turning forward
 9  delay(1000);
10  digitalWrite(5,LOW);
11  digitalWrite(6,LOW);//130 DC Motor Module stops
12  delay(1000);
13  digitalWrite(5,LOW);
14  digitalWrite(6,HIGH);//130 DC Motor Module reversal
15  delay(1000);
16  digitalWrite(5,LOW);
17  digitalWrite(6,LOW);//130 DC Motor Module stops
18  delay(1000);
19}

5.Test Result

After the code is uploaded to the controller board, the 130 DC Motor Module will turn forward for 1 second, stop for 1 second, reverse for 1 second, stop for 1 second.

6.Related Resources

PDF and Code
