1.Introduction

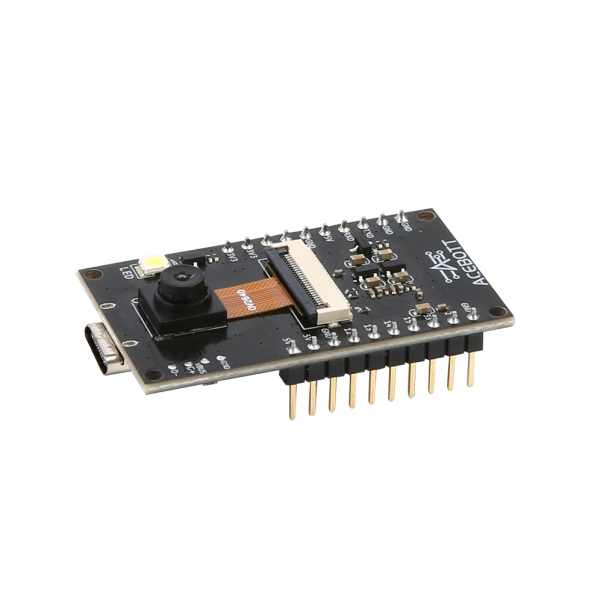

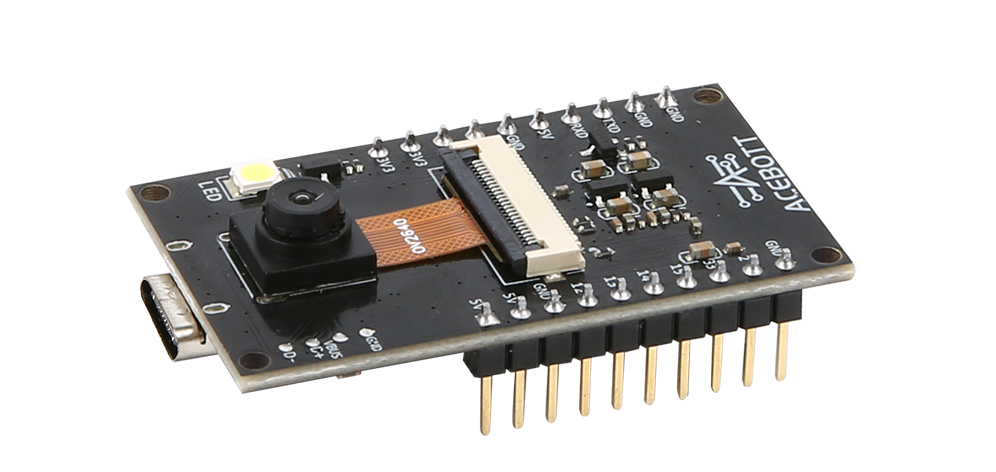

ACEBOTT-ESP32-CAM-V1.0 is the most competitive small size camera module in the industry, which can work independently as the smallest system.
ACEBOTT-ESP32-CAM-V1.0 can be widely used in various Internet of things applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other Internet of things applications.
ACEBOTT-ESP32-CAM-V1.0 adopts DIP package, which can be used directly when it is inserted into the bottom plate to realize the rapid production of products, provide customers with highly reliable connection, and facilitate the application in various Internet of Things hardware terminal occasions.
2.Features
Ultra-small volume 802.11b/g/n Wi-Fi SoC module
The low-power dual-core 32-bit CPU can be used as an application processor
The main frequency up to 240 MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support for UART / SPI / I2C / PWM / ADC / DAC interfaces
Support for OV2640 and OV7670 cameras, with a built-in flash
Support image WiFI upload
Supports multiple dormancy modes
Lwip and FreeRTOS
Supports the STA / AP / STA + AP working mode
Support Smart Config / AirKiss one-click distribution network
3.Specifications
| Parameters | Value/Description |
|---|---|

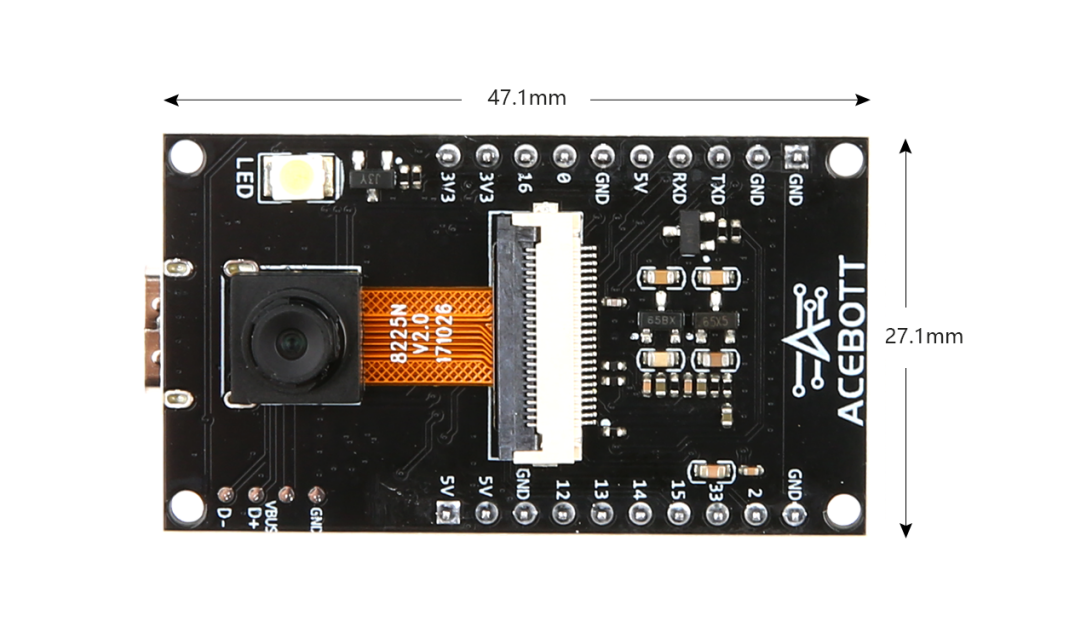

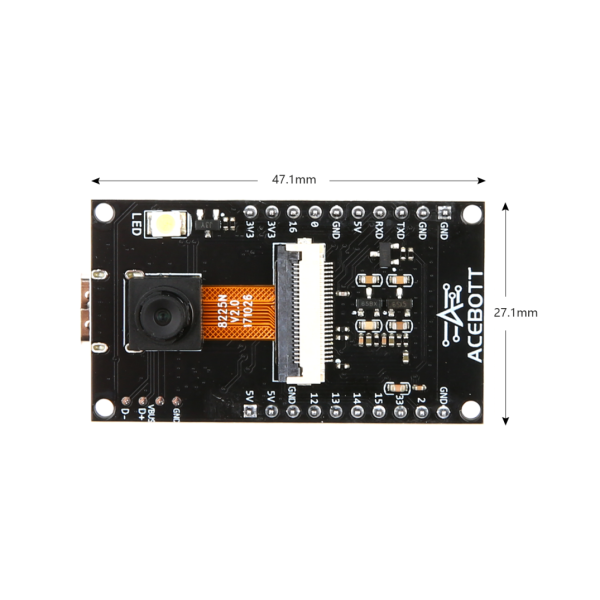

| Size | 27.1×47.1(mm) |
| Encapsulation | DIP-20 |
| Power supply | Type-c |
| Support interface | UART/SPI/I2C/PWM |
| Number of IO ports | 10 |
| Serial port baud rate | Support 110 ~ 4608000 bps, Default 115200 bps |
| SPI Flash | Default 32Mbit |
| Image output format | JPEG (supported by OV2640 only), BMP, GRAYSCALE |
| Spectrum range | 2400~2483.5MHz |
| Antenna form | External PCB antenna, gain 2 dBi |
| Power consumption | Turn off the flash:180mA@5V |
| Turn on the flash light and adjust the brightness to the maximum:310mA@5V | |
| Deep-sleep: The lowest power consumption can reach 6 mA@5V | |
| Moderm-sleep: The minimum level is 20 mA@5V | |
| Light-sleep: The minimum value can reach 6.7 mA@5V | |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Power supply range | 4.75-5.25V |
| Operating temperature | -20 °C ~ 70 °C |
| Storage environment | -40 °C ~ 1250 °C，<90%RH |
4.Sample Code
Connect the board to the computer using a Type-C data cable: Select “ESP32” -> “ESP32 Dev Module” from the Tools > Board menu. Choose the appropriate Port. And upload it to the board using the Upload button.
（1）Wiring Diagram
