- Arduino UNO R4 boards featuring the Renesas RA4M1 microcontroller (Arm Cortex®-M4 32bits) clocked at 48 MHz for enhanced processing power
- Multiple peripherals (x14 Pins, x6 PMW, x6 ADC, 12-bit DAC, SPI, I2C, CAN,…) expand possibilities for advanced projects

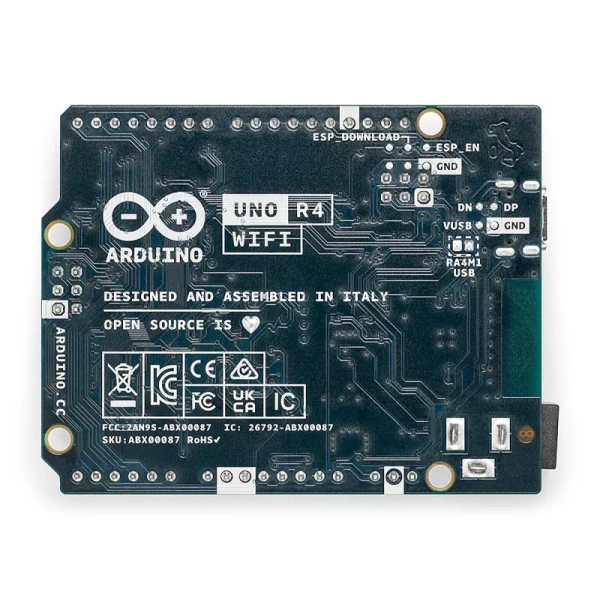

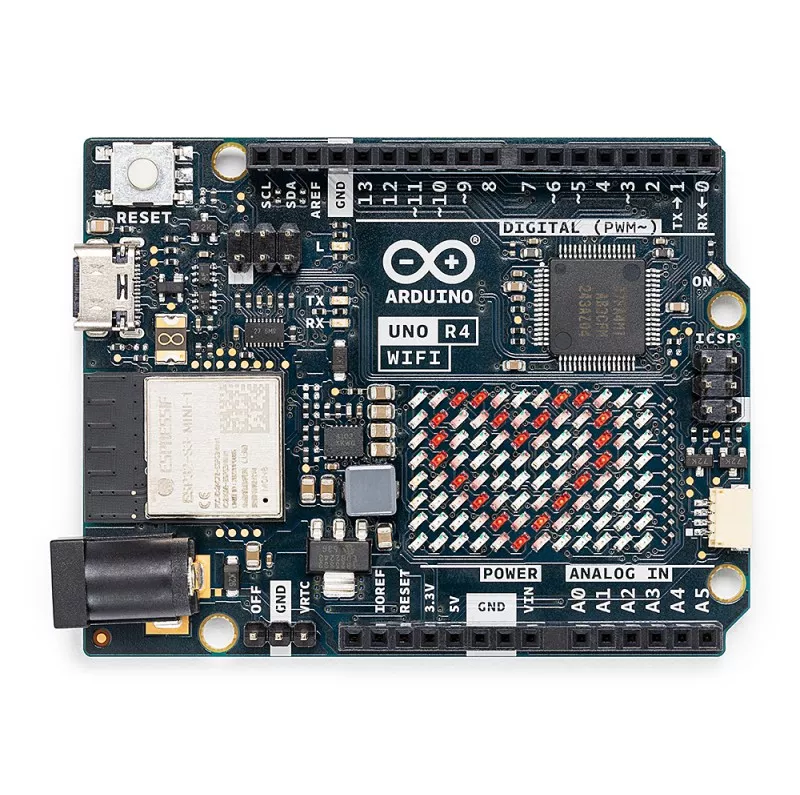

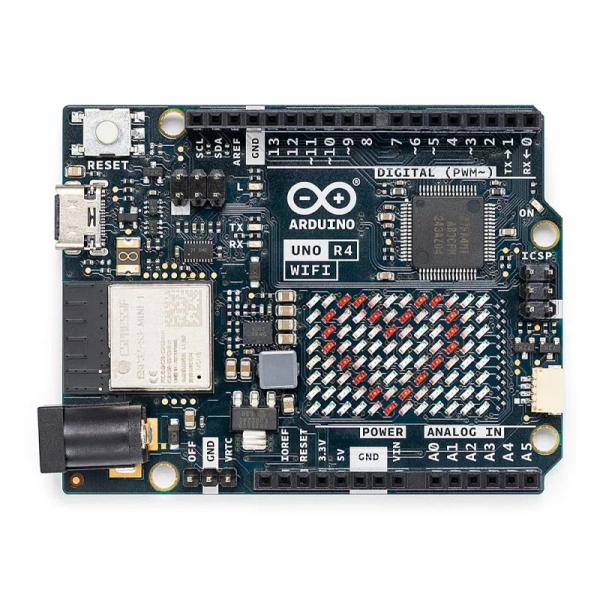

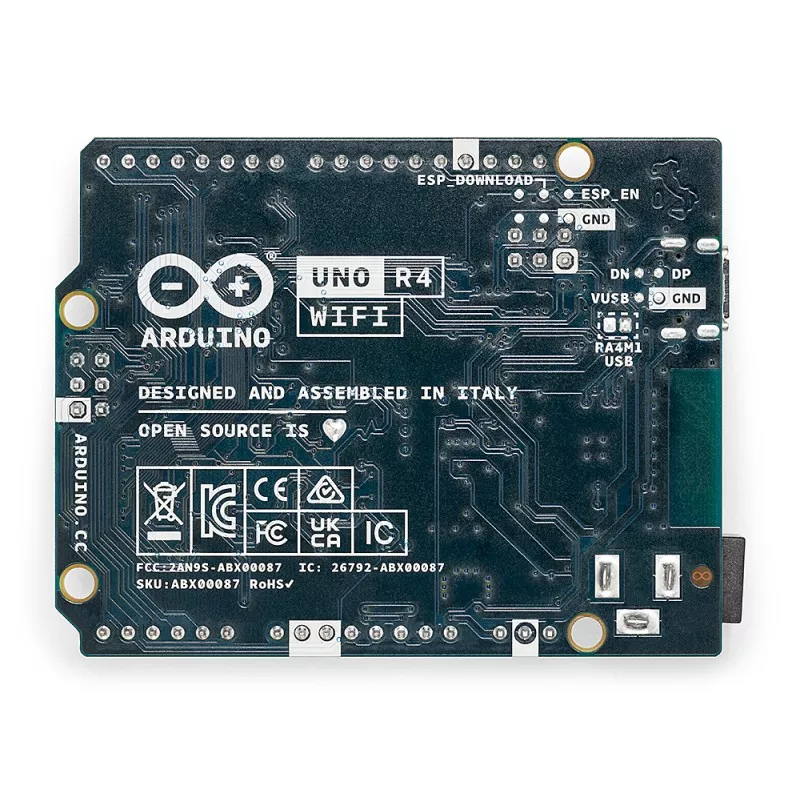

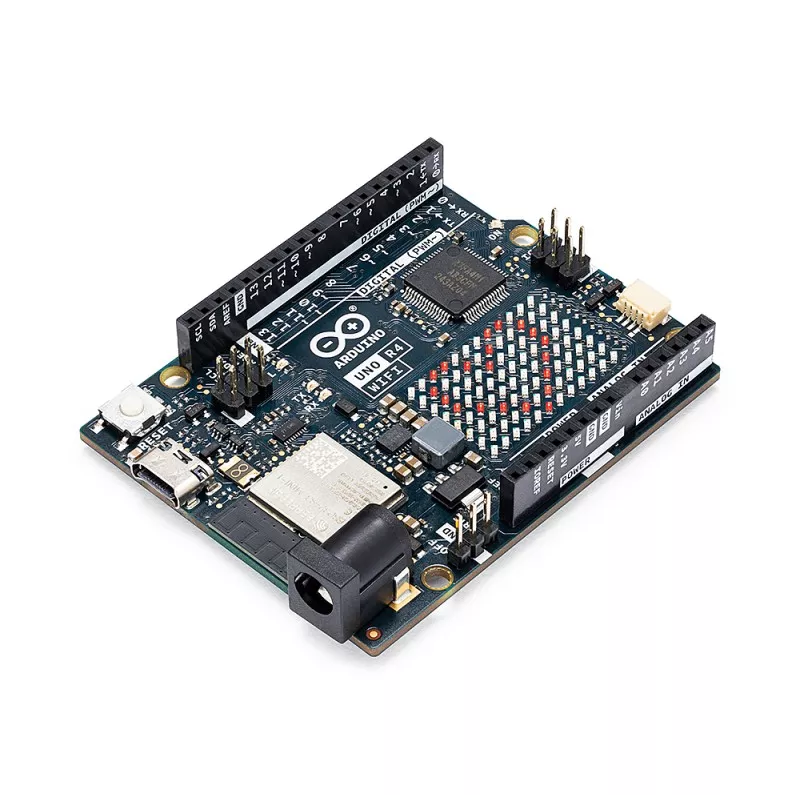

- WiFi version: includes ESP32-S3 WiFi / BLE connectivity module, adding wireless connectivity to your projects
- Hardware compatibility extended to all existing Arduino shields
Features
| WiFi version | Minima version | ||
|
Microcontroller |
R7FA4M1AB3CFM (ARM Cortex M4) |
Yes |
Yes |
| Memory | 256KB flash / 32KB SRAM |
Yes |
Yes |
| Operating voltage |
5V |
Yes | Yes |
| Input voltage |
6-24V |
Yes | Yes |
| Clock speed |
48 MHz |
Yes | Yes |
| Programming port |
USB-C |
Yes | Yes |
| WiFi/BLE | ESP32-S3-MINI | Yes | Yes |
| Digital pins | x14 | Yes | Yes |
| PWM | x6 | Yes | Yes |
| ADC | x6 | Yes | Yes |
| DAC | 1 (12 bit) | Yes | Yes |
| SPI | 1 | Yes | Yes |
| I2C | 1 | Yes | Yes |
| CAN | 1 | Yes | Yes |
| LED matrix | 12×8 (96 red LEDs) | Yes | No |
| Additional connectors | Qwiic, OFF, VRTC | Yes | No |
UNO REV4 board, a significant hardware improvement for makers:
The WiFi version includes an Espressif S3 WiFi module, opening up new creative opportunities for makers. On the other hand, the UNO R4 Minima is an economical option for those looking for a microcontroller without additional wireless functionality.
SRAM capacity has been increased from 2 kB (UNO REV 3) to 32 kB, and flash memory from 32 kB to 256 kB to support more complex projects. Most existing libraries and examples work without a hitch, ensuring excellent software compatibility. The board is equipped with a USB-C port and the maximum supply voltage has been increased to 24V, with improved thermal design. The UNO R4 Minima features a CAN bus and an SPI port, enabling users to reduce wiring and perform parallel tasks by connecting multiple shields.
In terms of pinout, the voltage and form factor of the UNO R4 remain unchanged from the UNO R3, ensuring maximum hardware and electrical compatibility with existing shields and projects. On the software side, considerable effort has gone into ensuring backward compatibility with the most popular Arduino libraries, enabling users to build on existing code examples and tutorials. In most cases, the libraries and examples will work immediately, but some of them, optimized for the AVR architecture used in the UNO R3, will need to be adapted.
