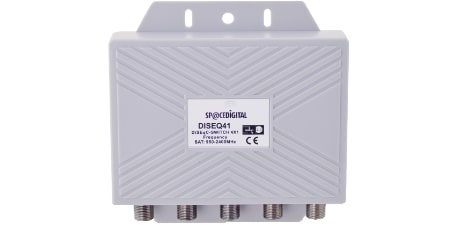

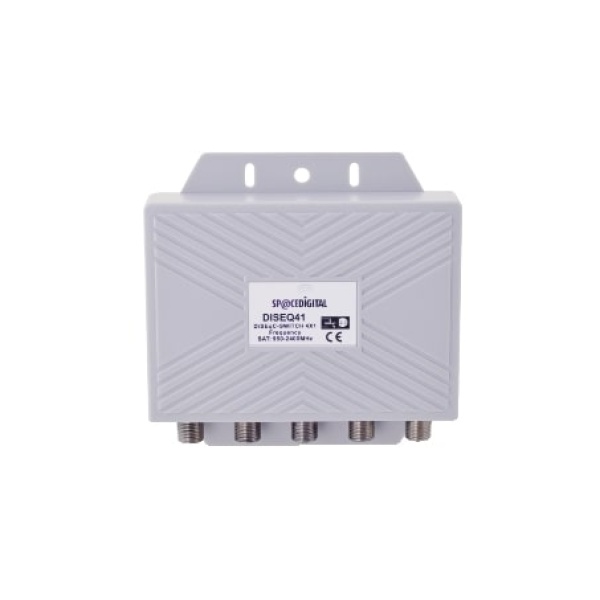

It must be connected directly to 1 ÷ 4 LNB (single output) for single user control (mixed output for single SAT receiver) of max.4 signals coming from 1 ÷ 4 different satellites. Useful when with a single antenna, with up to 4 LNBs installed, you want to receive up to 4 satellites. Equipped with automatic switching system. F connectors and suitable for outdoor installation.
| LNB inputs | 4 |
|---|---|
| Outputs | 1 |
| Switching system | DiSEqC 1.0 |
| Compatibilità con ricevitori | > DiSEqC 1.0 |
| Working frequency | 40-2150 MHz |
| Passage loss | 2,5 dB |
| IN / OUT insulation | 26 dB |
| Absorption | 45 mA |
