DTECH DT-7009C HDMI extender over cat6 50m

The DTECH DT-7009C HDMI Extender utilizes Cat6 Ethernet cables to extend HDMI signals, offering a cost-effective and flexible solution for long-distance HDMI transmission. It supports high-definition video resolutions and audio formats, ensuring a high-quality viewing experience without signal degradation. The extender consists of a transmitter and a receiver unit, which work together to deliver seamless HDMI connectivity over a network cable.

Features

1. HDMI Signal Extension: Extends HDMI signals up to 50 meters (164 feet) over a single Cat6 Ethernet cable.
2. High-Definition Video: Supports resolutions up to 1080p @ 60Hz, providing clear and detailed video output.
3. Audio Support: Transmits audio along with video, supporting various audio formats.
4. Plug and Play: Simple installation with no need for additional drivers or software.
5. EDID Support: Maintains consistent video quality by managing EDID information.
6. Compact Design: Small and lightweight units for easy integration and installation.
7. LED Indicators: Provides LED indicators for power and signal status to help monitor operation.

Specifications

• Video Resolution: Up to 1080p @ 60Hz
• Transmission Distance: Up to 50 meters (164 feet) over Cat6 cable
• Audio Formats: Supports various audio formats including LPCM, Dolby-AC3, DTS7.1
• Input Port (Transmitter): 1 x HDMI Type A (Standard)
• Output Port (Receiver): 1 x HDMI Type A (Standard)
• Ethernet Cable Type: Cat6
• Power Supply: 5V DC, 1A for both transmitter and receiver
• Power Consumption: < 5W
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 20% to 90% RH (non-condensing)
• Dimensions:
  • Transmitter: 105mm x 65mm x 20mm (4.13in x 2.56in x 0.79in)
  • Receiver: 105mm x 65mm x 20mm (4.13in x 2.56in x 0.79in)
• Weight: Approx. 200g (7.05oz) for each unit

Instructions for Use

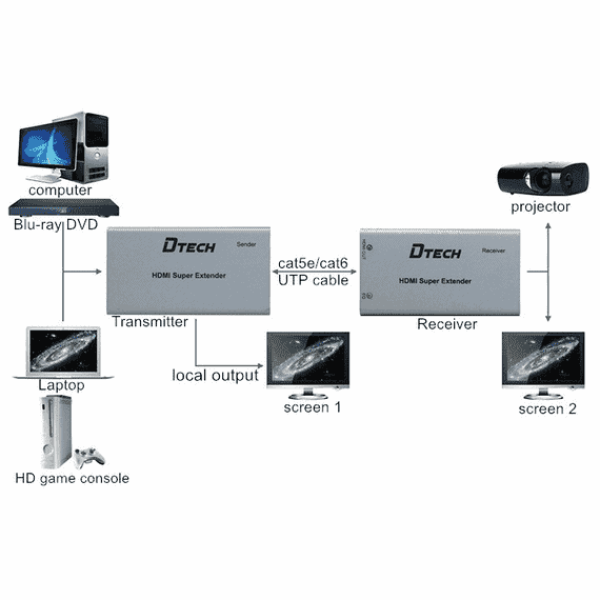

1. Connections

1. Powering the Device:
   • Connect the provided USB power cables to the power ports on both the transmitter and receiver units.
   • Plug the other ends of the USB power cables into USB power sources (e.g., USB ports on your TV or a USB power adapter).
2. Connecting HDMI Source:
   • Connect one end of an HDMI cable to the HDMI output port on your source device (e.g., DVD player, computer).
   • Connect the other end of the HDMI cable to the HDMI input port on the transmitter unit.
3. Connecting HDMI Display:
   • Connect one end of an HDMI cable to the HDMI output port on the receiver unit.
   • Connect the other end of the HDMI cable to the HDMI input port on your display device (e.g., TV or monitor).
4. Connecting Cat6 Cable:
   • Use a Cat6 Ethernet cable to connect the Ethernet ports on the transmitter and receiver units.

2. Operation

1. Power On:
   • Ensure all connections are secure and turn on your source device and display.
   • The extender will automatically begin transmitting the HDMI signal over the Cat6 cable.
2. Troubleshooting:
   • If there is no display output, check all cable connections and ensure that the Cat6 cable is properly connected.
   • Verify that the power supply is adequate and both the transmitter and receiver are receiving power.
   • Confirm that the display is set to the correct HDMI input.

Package Contents

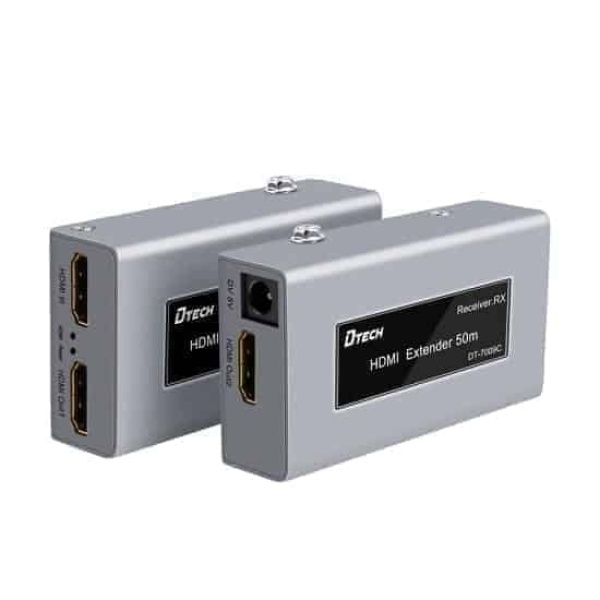

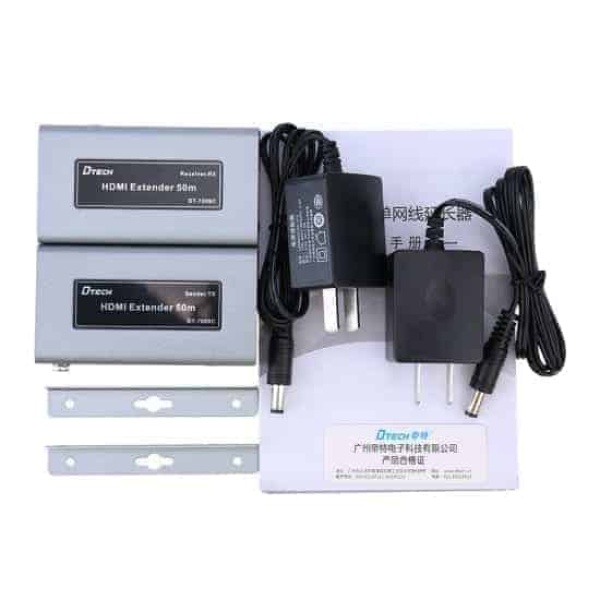

• 1 x DTECH DT-7009C HDMI Extender Transmitter
• 1 x DTECH DT-7009C HDMI Extender Receiver
• 2 x USB Power Cables
• 2 x Power Adapters (5V DC, 1A)
• 1 x User Manual
