DTECH DT-7050 120mKvm Rc Usb To Hdmi Extender

The DTECH DT-7050 120m KVM RC USB to HDMI Extender is designed to extend HDMI signals and USB connections over a long distance using a single Cat5e/6 cable. This extender is perfect for scenarios where you need to control a remote computer from a different location, such as in control rooms, conference rooms, or classrooms.

Features

1. Long-Distance Extension: Extends HDMI video and USB signals up to 120 meters (394 feet) over a single Cat5e/6 cable.
2. High-Resolution Support: Supports video resolutions up to 1080p @ 60Hz for clear and detailed video output.
3. KVM Functionality: Allows for keyboard, video, and mouse (KVM) control over a long distance, providing remote access to the connected computer.
4. USB 2.0 Ports: Includes USB 2.0 ports for connecting peripherals such as keyboard, mouse, and other USB devices.
5. Plug and Play: Easy setup with no need for additional drivers or software.
6. IR Pass-Through: Allows for remote control of the HDMI source device using an IR remote.
7. Compact Design: Small and lightweight units for easy integration and installation.
8. LED Indicators: Provides LED indicators for power and signal status to help monitor operation.

Specifications

• Video Resolution: Up to 1080p @ 60Hz
• Transmission Distance: Up to 120 meters (394 feet) over Cat5e/6 cable
• USB Ports: 4 x USB 2.0 ports
• IR Pass-Through: Yes

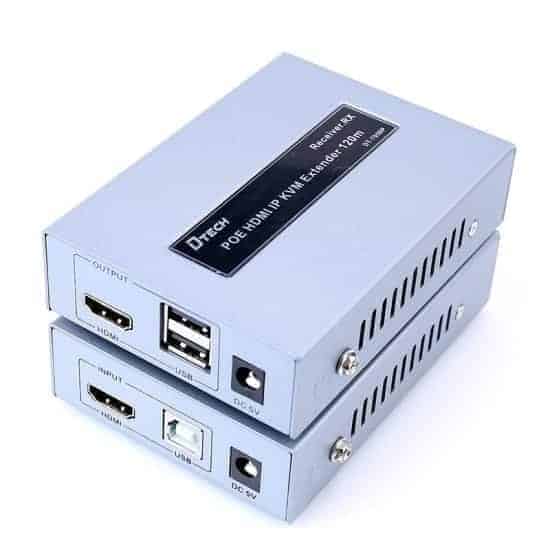

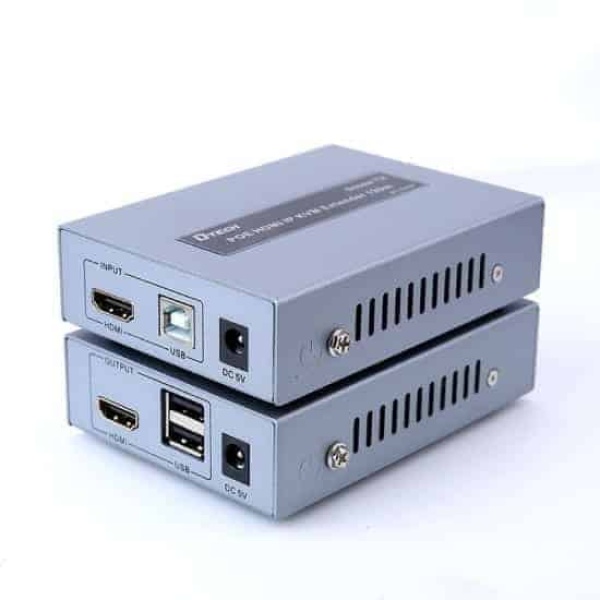

• Input Port (Transmitter): 1 x HDMI Type A (Standard), 1 x USB Type B
• Output Port (Receiver): 1 x HDMI Type A (Standard), 4 x USB Type A
• Ethernet Cable Type: Cat5e/6
• Power Supply: 5V DC, 1A for both transmitter and receiver
• Power Consumption: < 5W
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 20% to 90% RH (non-condensing)
• Dimensions:
  • Transmitter: 100mm x 70mm x 25mm (3.94in x 2.76in x 0.98in)
  • Receiver: 100mm x 70mm x 25mm (3.94in x 2.76in x 0.98in)
• Weight: Approx. 300g (10.58oz) for each unit

Instructions for Use

1. Connections

1. Powering the Device:
   • Connect the provided power adapters to the power ports on both the transmitter and receiver units.
   • Plug the other ends of the power adapters into power outlets.
2. Connecting HDMI Source:
   • Connect one end of an HDMI cable to the HDMI output port on your source device (e.g., computer).
   • Connect the other end of the HDMI cable to the HDMI input port on the transmitter unit.
3. Connecting USB Devices:
   • Connect the USB peripherals (keyboard, mouse, etc.) to the USB ports on the receiver unit.
   • Connect one end of a USB cable to the USB input port on the transmitter unit.
   • Connect the other end of the USB cable to the USB port on your source device.
4. Connecting Cat5e/6 Cable:
   • Use a Cat5e/6 Ethernet cable to connect the Ethernet ports on the transmitter and receiver units.
5. Connecting IR Blaster and Receiver:
   • Connect the IR blaster to the IR output port on the transmitter unit.
   • Place the IR blaster in front of the HDMI source device.
   • Connect the IR receiver to the IR input port on the receiver unit.
   • Place the IR receiver where it can receive the remote control signals (typically near the display).

2. Operation

1. Power On:
   • Ensure all connections are secure and turn on your source device and display.
   • The extender will automatically begin transmitting the HDMI and USB signals over the Cat5e/6 cable and facilitate IR control.
2. Troubleshooting:
   • If there is no display output or USB functionality, check all cable connections and ensure that the Cat5e/6 cable is properly connected.
   • Verify that the power supply is adequate and both the transmitter and receiver are receiving power.
   • Confirm that the display is set to the correct HDMI input.
   • Ensure the IR blaster and receiver are correctly positioned and connected.

Package Contents

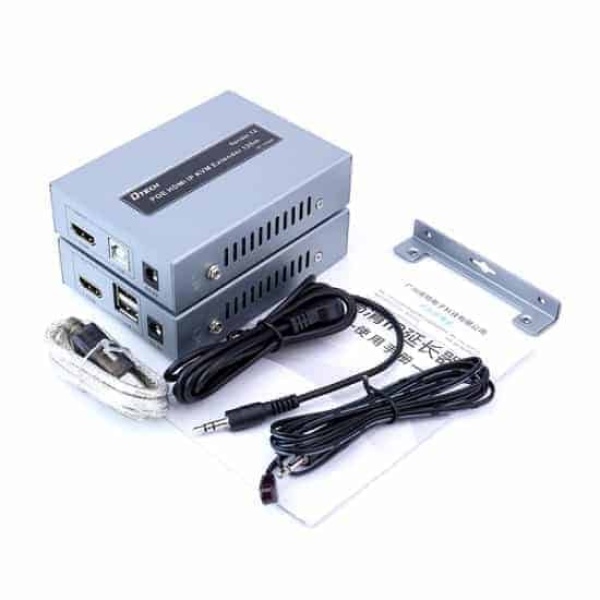

• 1 x DTECH DT-7050 HDMI Extender Transmitter
• 1 x DTECH DT-7050 HDMI Extender Receiver
• 2 x Power Adapters (5V DC, 1A)
• 1 x IR Blaster
• 1 x IR Receiver
• 1 x USB Cable
• 1 x User Manual

The DTECH DT-7050 120m KVM RC USB to HDMI Extender provides a comprehensive solution for extending HDMI and USB signals over long distances, making it suitable for various applications that require remote control and high-definition video transmission.
