DTECH DT-7060 HDMI H.264 Wireless extender 50M

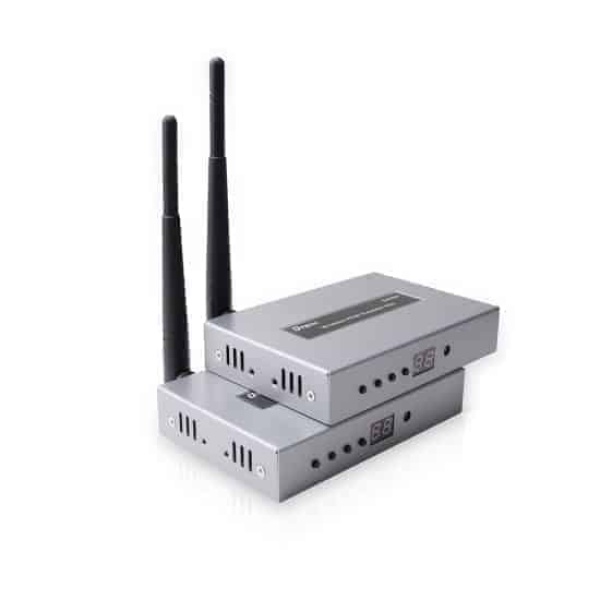

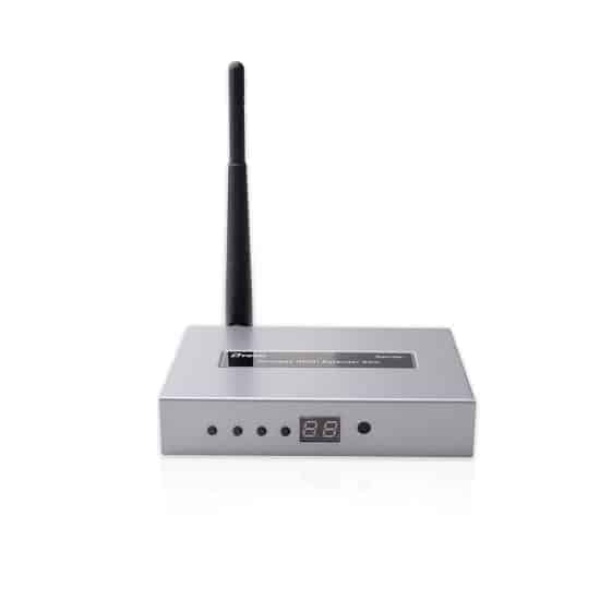

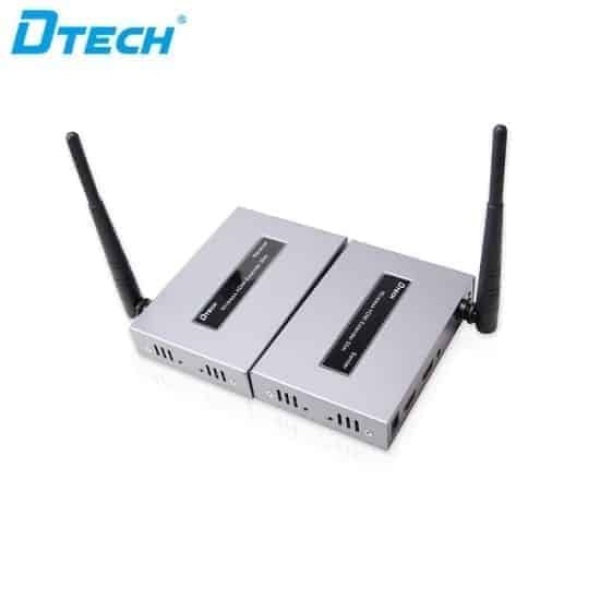

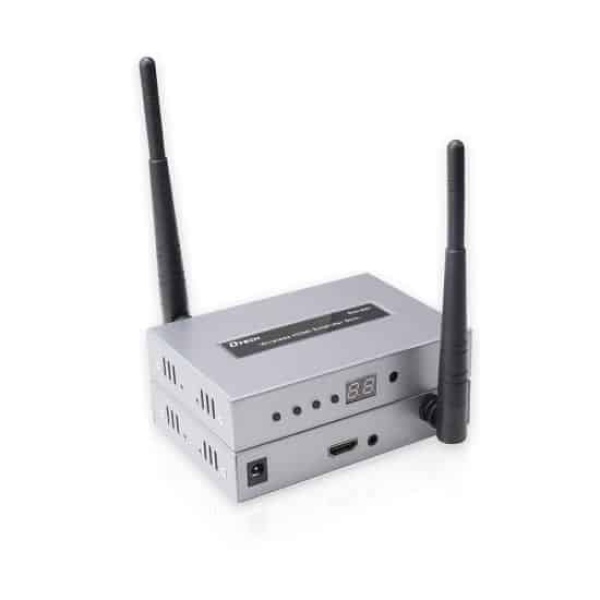

The DTECH DT-7060 HDMI Wireless Extender allows you to transmit HDMI signals from a source device to a display device wirelessly. This extender uses H.264 compression to deliver high-definition video and audio over long distances with minimal latency. It consists of a transmitter and a receiver unit, which communicate over a wireless network, making it easy to set up and use in various environments.

Features

1. Wireless HDMI Transmission: Transmits HDMI signals wirelessly up to 50 meters (164 feet) with no cables required.
2. High-Quality Video: Supports resolutions up to 1080p @ 60Hz, ensuring clear and detailed video output.
3. H.264 Compression: Utilizes H.264 compression technology to deliver high-quality video with efficient bandwidth usage.
4. Plug and Play: Easy setup with no need for additional software or drivers.
5. Low Latency: Ensures minimal delay for smooth and responsive video playback.
6. IR Pass-Through: Supports IR pass-through, allowing you to control the source device from the remote location.
7. Compact Design: Small and lightweight units for easy integration and installation.
8. Stable Connection: Provides a stable and reliable wireless connection with robust signal integrity.

Specifications

• Video Compression: H.264
• Maximum Resolution: 1080p @ 60Hz
• Transmission Distance: Up to 50 meters (164 feet) line-of-sight
• Latency: <200ms
• Frequency Band: 5GHz
• Input Port (Transmitter): 1 x HDMI Type A (Standard)
• Output Port (Receiver): 1 x HDMI Type A (Standard)
• IR Pass-Through: Yes
• Power Supply: 5V DC, 1A for both transmitter and receiver
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 20% to 90% RH (non-condensing)
• Dimensions:
  • Transmitter: 105mm x 75mm x 20mm (4.13in x 2.95in x 0.79in)
  • Receiver: 105mm x 75mm x 20mm (4.13in x 2.95in x 0.79in)
• Weight: Approx. 300g (10.58oz) for each unit

Package Contents

• 1 x DTECH DT-7060 HDMI Wireless Transmitter
• 1 x DTECH DT-7060 HDMI Wireless Receiver
• 2 x Power Adapters (5V DC, 1A)
• 1 x IR Blaster (for transmitter)
• 1 x IR Receiver (for receiver)
• 1 x User Manual

The DTECH DT-7060 HDMI H.264 Wireless Extender 50M offers a flexible and efficient solution for wirelessly extending HDMI signals, providing high-quality video and audio transmission for a variety of applications.
