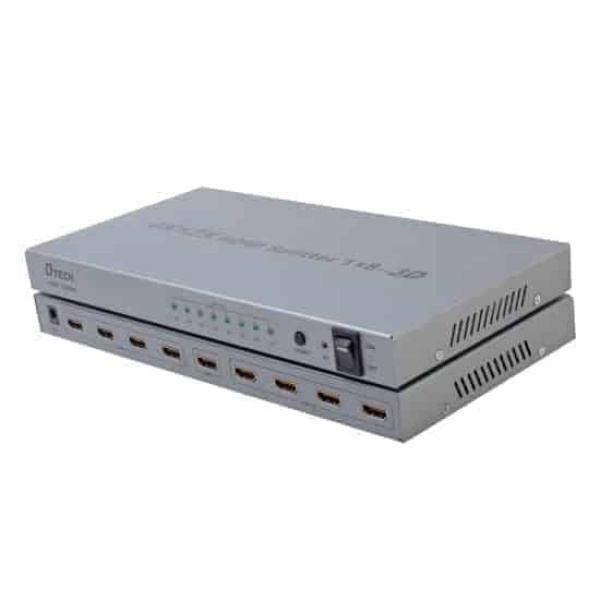

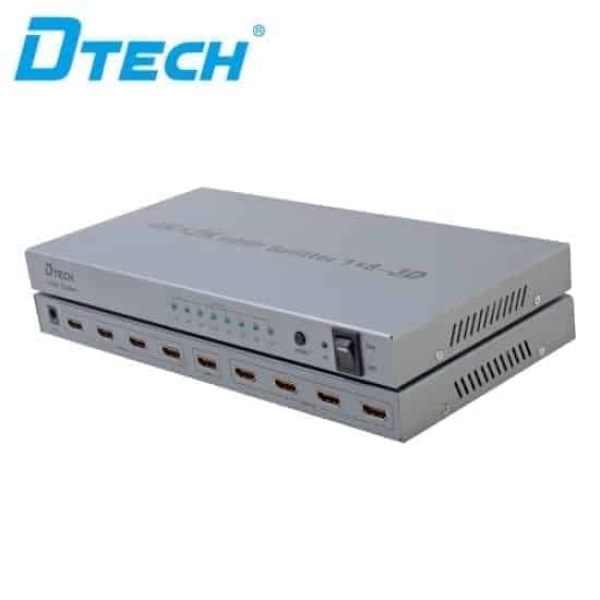

The DTECH DT-7148 HDMI Splitter allows one HDMI source to be displayed on up to eight HDMI-compatible screens without any loss of signal quality. This splitter is capable of handling high-resolution video and multiple audio formats, making it a versatile and reliable solution for both professional and home use.
Features
- 4K Ultra HD Support: Distributes 4Kx2K (3840×2160) @ 30Hz resolution signals to eight displays simultaneously.
- High Bandwidth: Supports data transfer rates up to 10.2 Gbps, ensuring smooth and high-quality video transmission.
- Deep Color and 3D: Supports 36-bit Deep Color and 3D video formats for enhanced video quality and immersive experiences.
- Multiple Output Displays: Connects one HDMI source to eight HDMI displays, providing identical output on each screen.
- Audio Formats: Compatible with various audio formats, including LPCM, Dolby-AC3, DTS7.1, and DSD, ensuring high-fidelity sound.
- Plug and Play: Simple installation with no need for additional software or drivers.
- LED Indicators: Provides LED indicators for power and signal status, making it easy to monitor the device’s operation.
- Compact and Durable: Small form factor with a sturdy metal casing for durability and efficient heat dissipation.
Specifications
- HDMI Version: HDMI 1.4
- Maximum Resolution: 4Kx2K @ 30Hz (3840×2160)
- Bandwidth: 10.2 Gbps
- Supported Video Formats: 3D, 36-bit Deep Color
- Supported Audio Formats: LPCM, Dolby-AC3, DTS7.1, DSD
- Input Port: 1 x HDMI Type A (Standard)
- Output Ports: 8 x HDMI Type A (Standard)
- Power Supply: 5V DC, 2A
- Power Consumption: < 10W
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 20% to 90% RH (non-condensing)
- Dimensions: 285mm x 85mm x 25mm (11.22in x 3.35in x 0.98in)
- Weight: Approx. 450g (15.87oz)
Package Contents
- 1 x DTECH DT-7148 4K HDMI Splitter
- 1 x Power Adapter (5V DC, 2A)
- 1 x User Manual
The DTECH DT-7148 4K 1 to 8 HDMI Splitter is a high-performance solution for distributing high-definition video and audio from a single HDMI source to multiple displays, making it suitable for a wide range of applications that demand superior signal distribution and quality.
