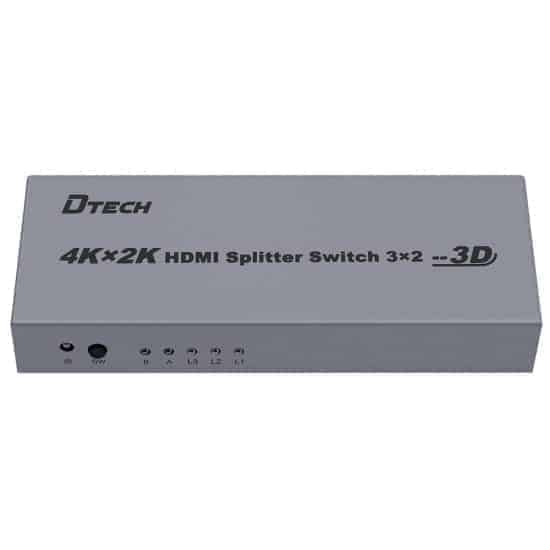

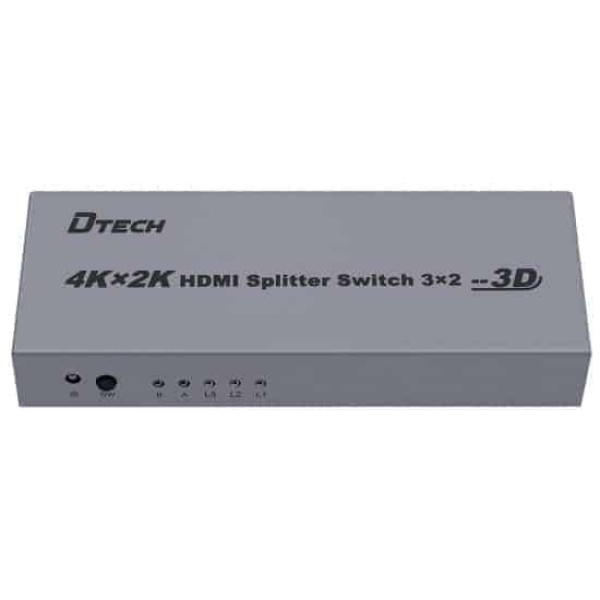

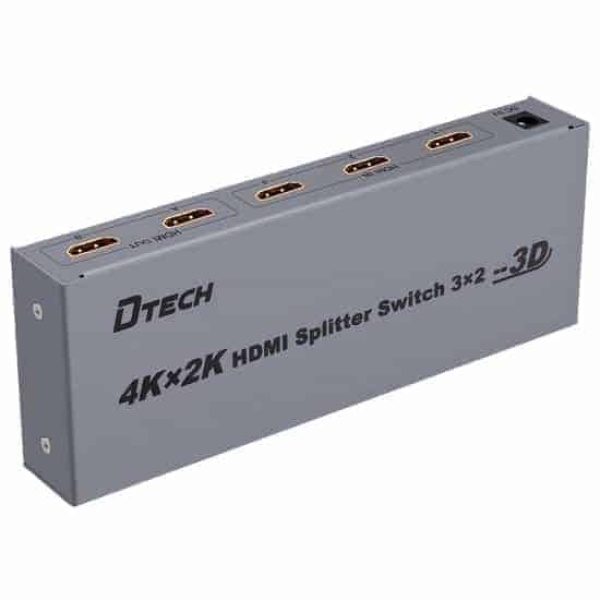

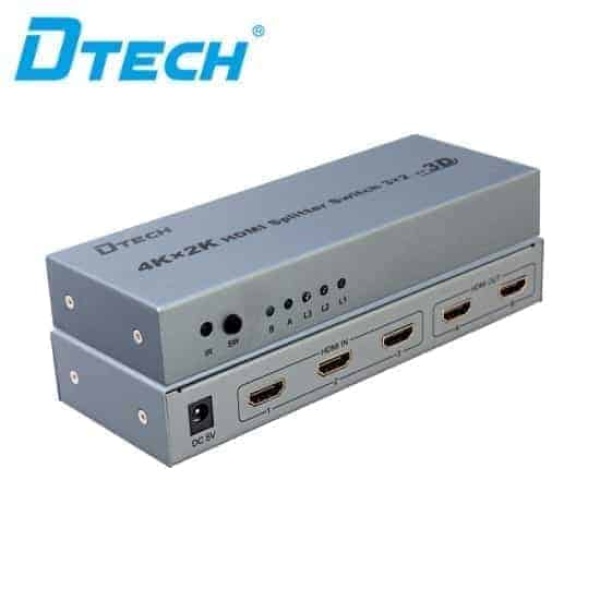

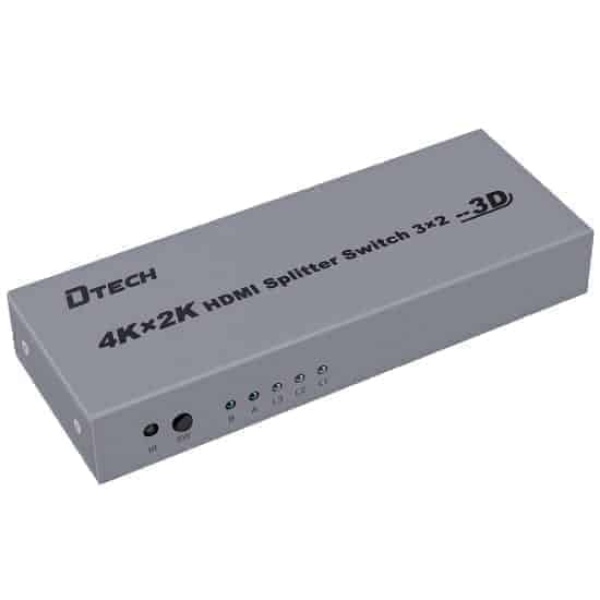

DTECH DT-7432 4K HDMI splitter switch 3 to 2

The DTECH DT-7432 HDMI Splitter Switch enables seamless switching between multiple HDMI sources and outputs the selected source to two displays without signal degradation. It supports high-resolution video and multiple audio formats, providing a flexible and efficient solution for managing multiple HDMI devices and displays.

Features

1. 4K Ultra HD Support: Handles 4Kx2K (3840×2160) @ 30Hz resolution signals, delivering high-definition video quality.
2. Multiple Input Sources: Allows switching between three HDMI input sources, providing flexibility in managing multiple devices.
3. Dual Output Displays: Distributes the selected HDMI input to two HDMI output displays simultaneously.
4. High Bandwidth: Supports data transfer rates up to 10.2 Gbps, ensuring smooth and high-quality video transmission.
5. Deep Color and 3D: Supports 36-bit Deep Color and 3D video formats for enhanced video quality and immersive experiences.
6. Audio Formats: Compatible with various audio formats, including LPCM, Dolby-AC3, DTS7.1, and DSD, ensuring high-fidelity sound.
7. Plug and Play: Easy to install and use with no need for additional software or drivers.

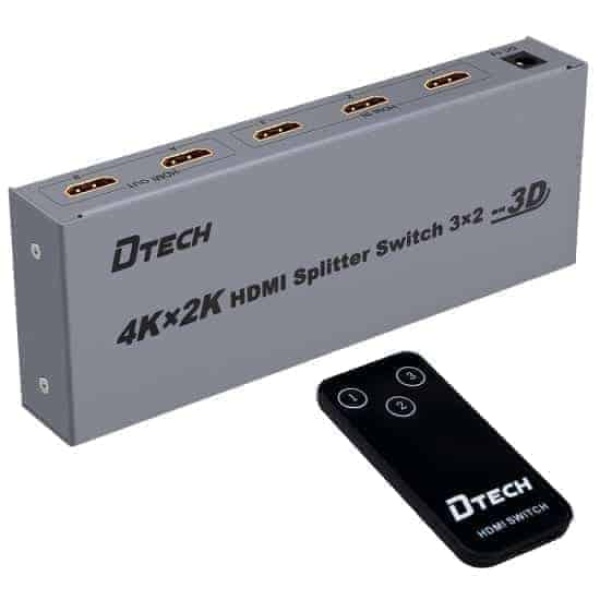

8. Remote Control: Includes a remote control for convenient switching between input sources.
9. LED Indicators: Provides LED indicators for power, input selection, and output status, making it easy to monitor the device’s operation.
10. Compact and Durable: Small form factor with a sturdy metal casing for durability and efficient heat dissipation.

Specifications

• HDMI Version: HDMI 1.4
• Maximum Resolution: 4Kx2K @ 30Hz (3840×2160)
• Bandwidth: 10.2 Gbps
• Supported Video Formats: 3D, 36-bit Deep Color
• Supported Audio Formats: LPCM, Dolby-AC3, DTS7.1, DSD

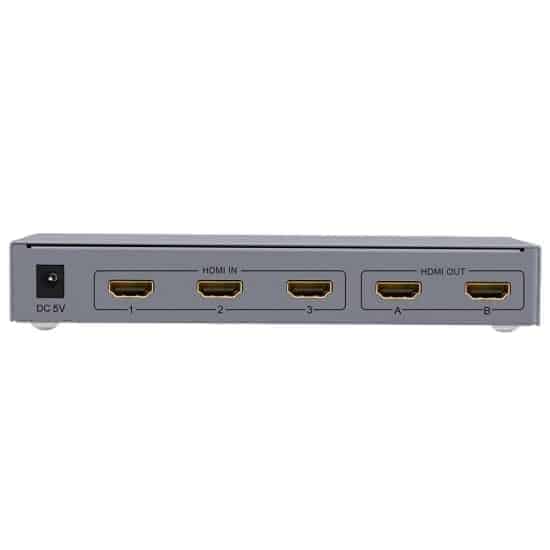

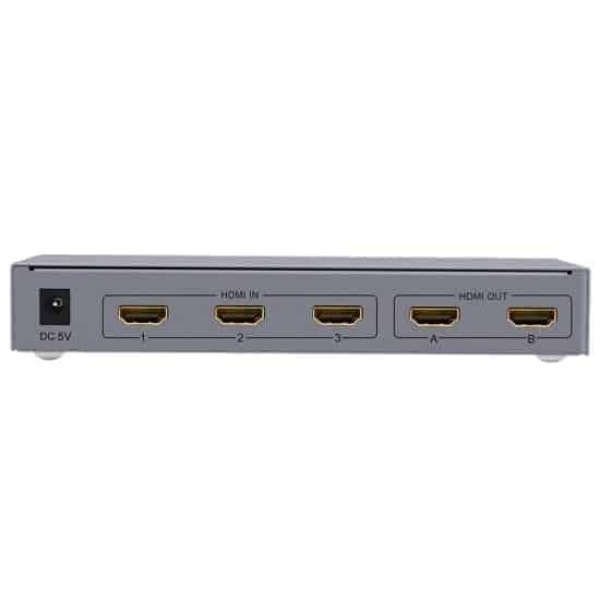

• Input Ports: 3 x HDMI Type A (Standard)
• Output Ports: 2 x HDMI Type A (Standard)
• Control Method: Remote control and manual switch
• Power Supply: 5V DC, 1A
• Power Consumption: < 5W
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 20% to 90% RH (non-condensing)
• Dimensions: 178mm x 60mm x 25mm (7.01in x 2.36in x 0.98in)
• Weight: Approx. 350g (12.35oz)

Package Contents

• 1 x DTECH DT-7432 4K HDMI Splitter Switch
• 1 x Power Adapter (5V DC, 1A)
• 1 x Remote Control
• 1 x User Manual

The DTECH DT-7432 4K HDMI Splitter Switch 3 to 2 offers a practical solution for managing multiple HDMI sources and outputs, providing high-quality video and audio distribution for a variety of applications.
