Black EXTRALINK rack – 12U, 600 × 450

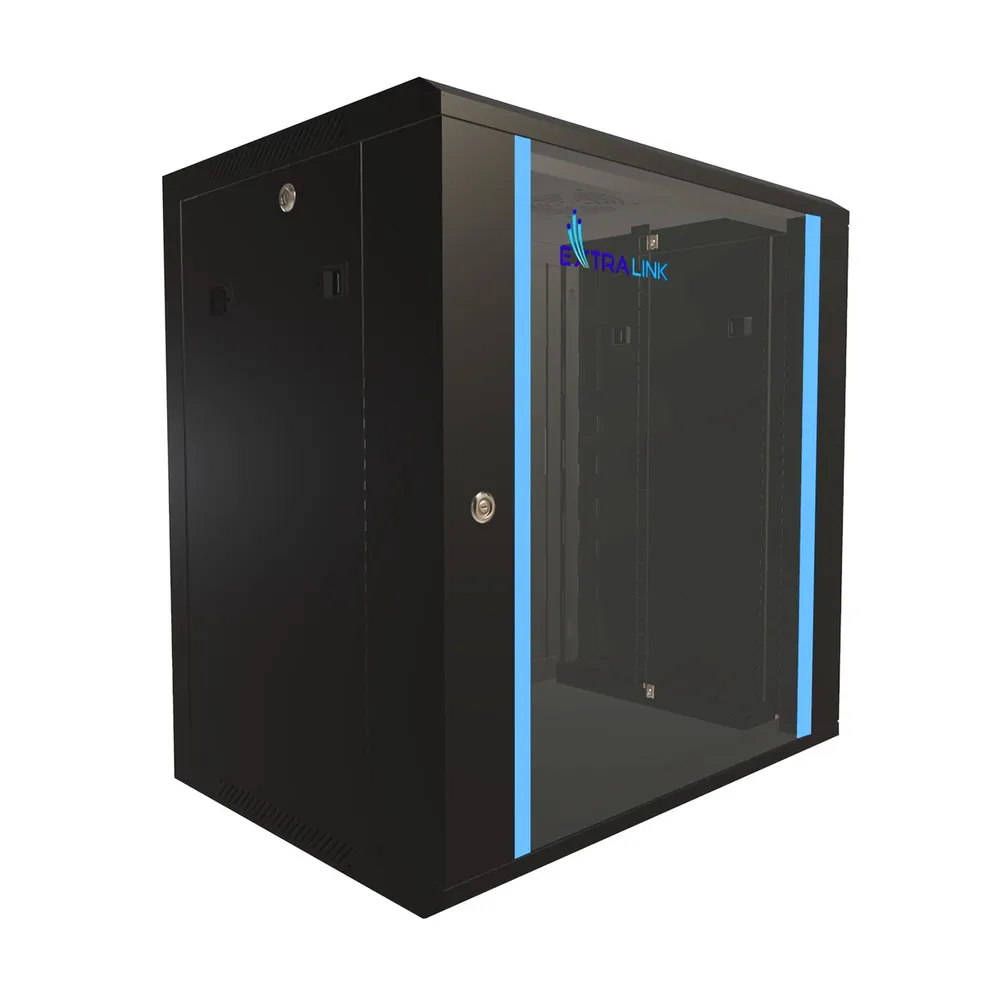

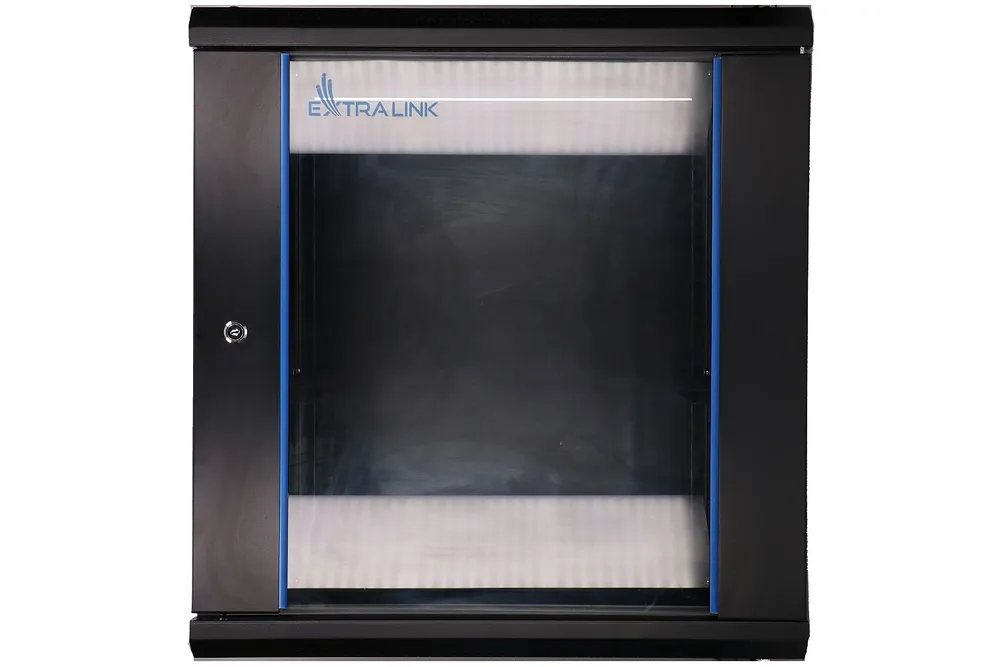

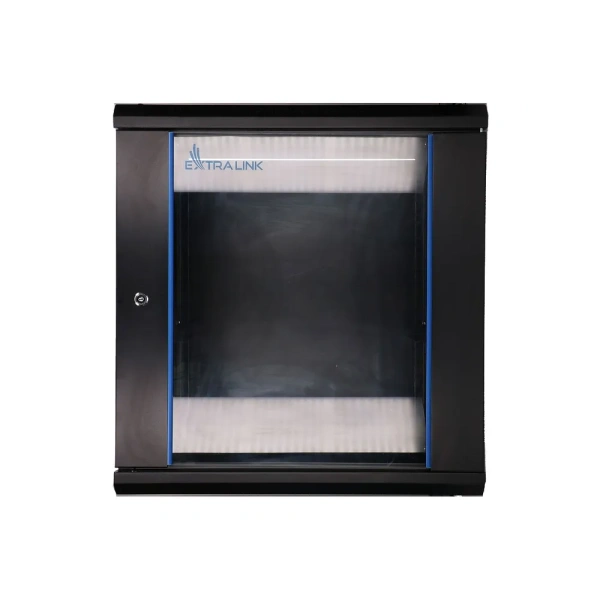

Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. External walls are made of cold rolled steel sheet. Equipped with tempered glass front door can open to left or right side.
Clearly marked cabinet height

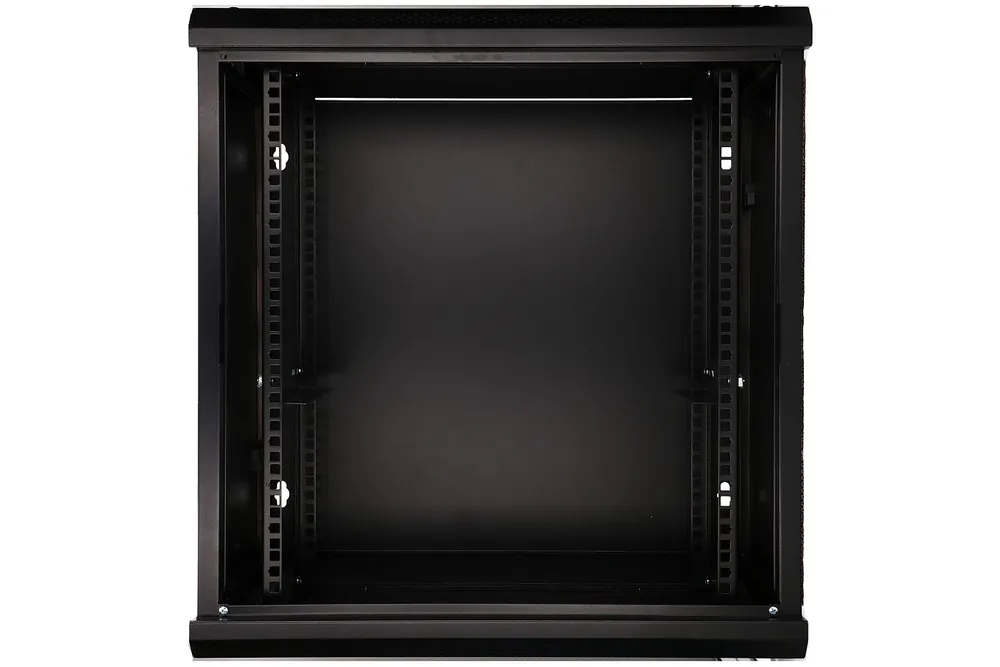

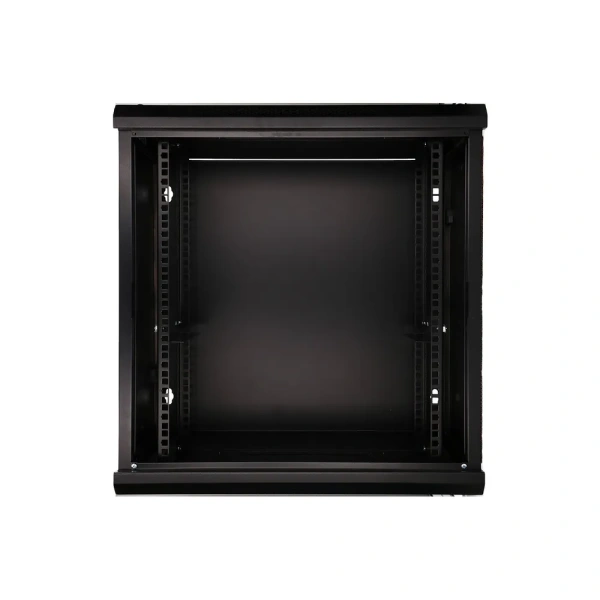

The vertical rails are marked with the corresponding height, which is 12U (from unit), while the total height of the cabinet is 64 cm.
Easy disassembly of side walls
The latches on the side walls allow for removal. Locks and keys are included.
Cabinet ceiling with possibility of installing fans
On the ceiling of the cabinet there are 2 places for installing fans for better cooling of the devices, there is also an additional pass-through for cables.
Cabinet construction – drawing
Main features
- Standard 19” mounting, welded frame, reliable construction
- Self-assembly frame design – easy to move and transport, reducing shipping costs
- Wall or upright mounting
- Easy installation (patent)
- Removable side panels
- Cable entry holes on both top cover and bottom panel
- Tempered glass front door with a rotation angle of more than 180 degrees
Specification
Features / filters
Cabinet hight
12U
Back door construction
Metal
Back door key lock
Yes
Colour
Black
Depth
450mm
Depth
450
Frame type
Closed
Front door construction
Glass/Steel
Front door key lock
Yes
Height
640
Key lock
Yes
Material
Glass, Metal
Maximum weight capacity
60
Number of fans
2
Product colour
Black
Rack capacity
12U
Removable back door
Yes
Removable front door
Yes
Size (imperial)
48.3
Stabilising foot screw
No
Type
Wall mounted rack
Type of doors
Glazed
Width
600mm
Width
600
