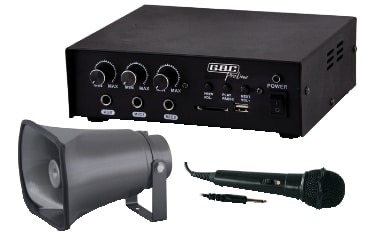

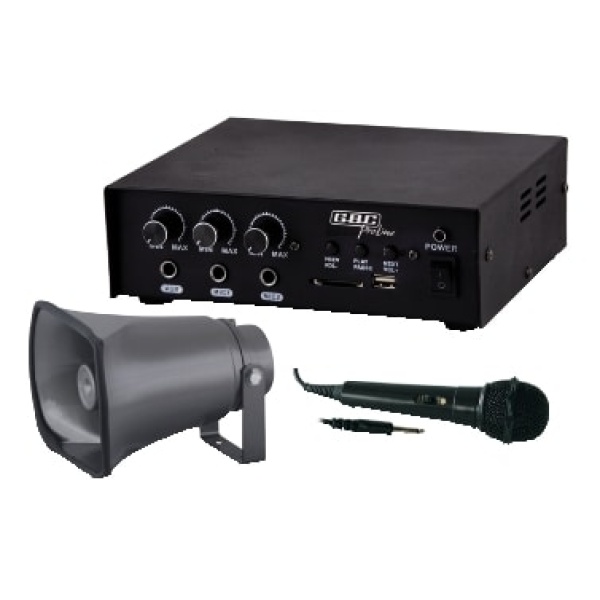

Small amplifier for easy use and installation on a car. It can be powered at 230Vac or at 12Vdc, via the vehicle battery. Plug-in terminals. USB / SD reader. 2 Mic 6,3mm inputs. AUX input. 4-16 Ohm output for connecting a passive speaker system. Dimensions (WxHxD): 205 x 65 x 200 mm. Equipped with a 25W / 8Ω horn speaker and 600 ohm dynamic microphone.
| Amplifier power | 30W rms |
|---|---|
| Mic. signal / noise ratio | 70 dB |
| Line signal / noise ratio | 80 dB |
| Output impedance | 4 – 16 ohm |
| Mic frequency response | -3dB (100Hz – 20Khz) |
| Line frequency response | -3dB (30Hz – 20Khz) |
| Mic inputs | 2 (6.3mm) |
| Aux Input | 1 |
| Power supply | 110 / 230Vac – 12Vdc, 3A |
| Amplifier Dimensions (WxHxD) | 205 x 65 x 200 mm. mm. |
| Amplifier weight | 2,2 Kg. |
| Microphone type | dynamic |
| Microphone impedance | 600 ohm |
| Trumpet power | 25W rms |
| Trumpet impedance | 8 ohm |
