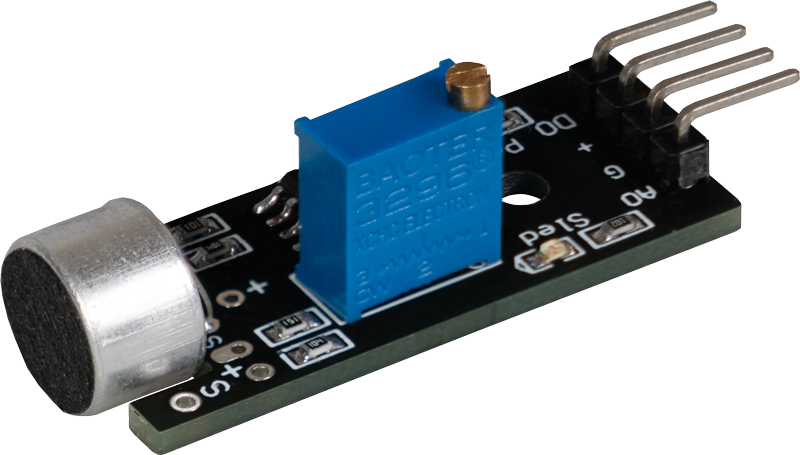

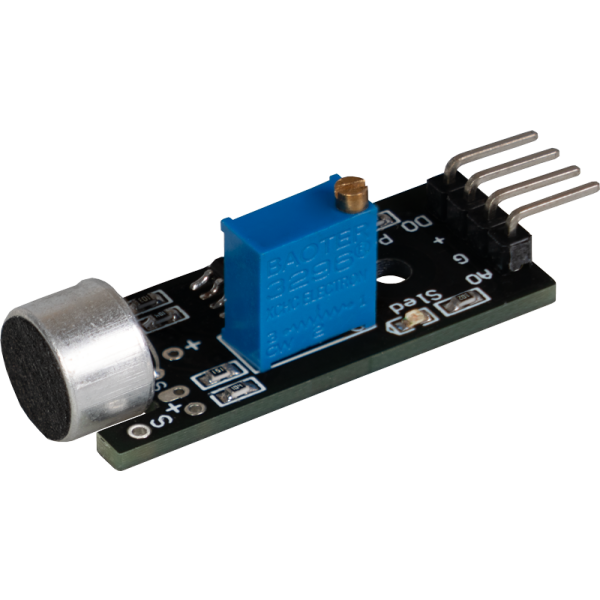

KY-037 Sound Sensor Module

This module is compatible with popular microcontroller platforms like Arduino, ESP32, ESP8266, and Raspberry Pi.

KY-037 SPECIFICATIONS

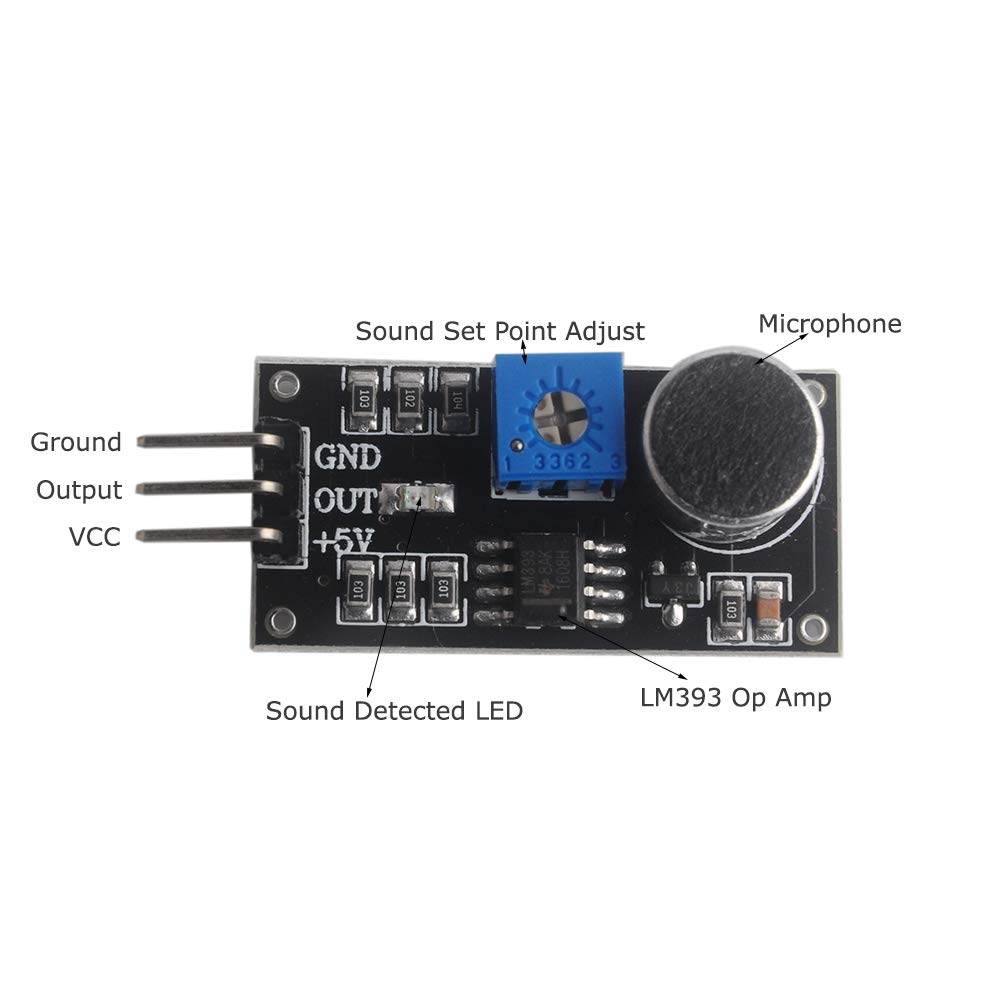

This module has a CMA-6542PF electret condenser microphone, an LM393 differential comparator to control the digital output, a 3296W potentiometer to adjust the detection threshold, 6 resistors, 2 LEDs and 4 male header pins. The module features analog and digital outputs.

CONNECTION DIAGRAM

KY-037 ARDUINO CODE

In the following Arduino sketch, we’ll measure the environment noise levels using the analog output of the module.

Calibrate the module’s detection threshold using the potentiometer. Turn it clockwise to increase detection sensitivity, or turn it counter-clockwise to decrease detection sensitivity.

If the module’s L2 LED is on, the noise levels are above the threshold and you should decrease the sensitivity. If the L2 LED is off, the noise level is below the threshold and you should increase the sensitivity. Turn the potentiometer to find the exact point where the LED changes its state.

Now that the detection threshold is calibrated, the digital output will activate the Arduino’s LED on Pin 13 when noise is detected. The analog output will show values relative to the supplied voltage and potentiometer position.

int digitalPin = 7;   // KY-037 digital interface
int analogPin = A0;   // KY-037 analog interface
int ledPin = 13;      // Arduino LED pin
int digitalVal;       // digital readings
int analogVal;        // analog readings

void setup()
{
  pinMode(digitalPin,INPUT);
  pinMode(analogPin, INPUT);
  pinMode(ledPin,OUTPUT);
  Serial.begin(9600);
}

void loop()
{
  // Read the digital inteface
  digitalVal = digitalRead(digitalPin);

  if(digitalVal == HIGH)
  {
    digitalWrite(ledPin, HIGH); // Turn ON Arduino's LED
  }
  else
  {
    digitalWrite(ledPin, LOW);  // Turn OFF Arduino's LED
  }

  // Read analog interface
  analogVal = analogRead(analogPin);
  // Print analog value to serial
  Serial.println(analogVal);
}

Use Tools > Serial Plotter on the Arduino IDE to visualize the values on the analog output.
