Pineboards TM1SXS HatDrive! Nano NVMe HAT for Raspberry Pi 5

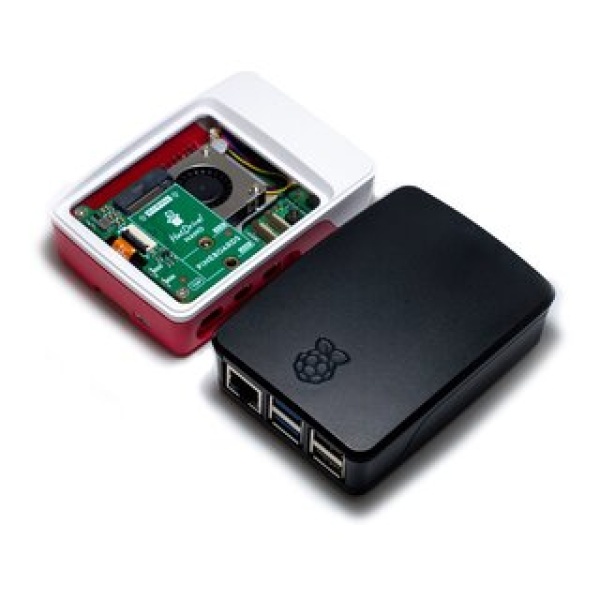

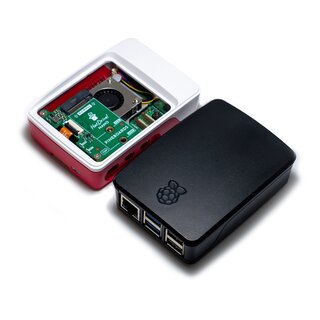

Looking for a Raspberry Pi 5 M.2 HAT that fits within your official case? So were we! That’s why we worked on the Pineboards HatDrive! Nano so that you don’t have to leave your poor Pi exposed to the world.

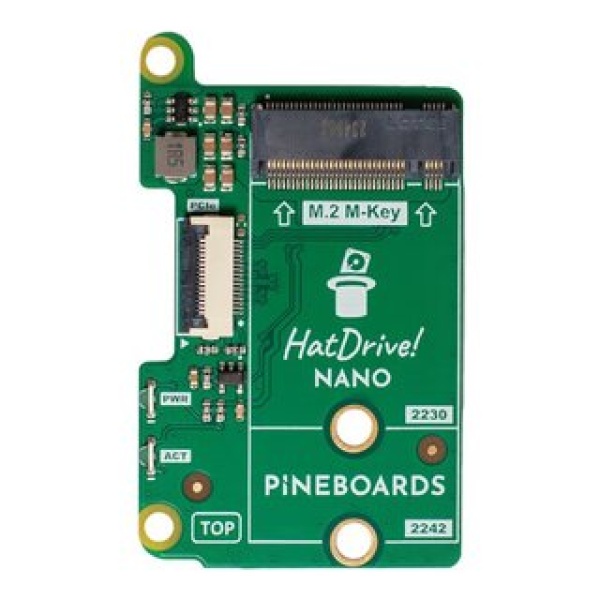

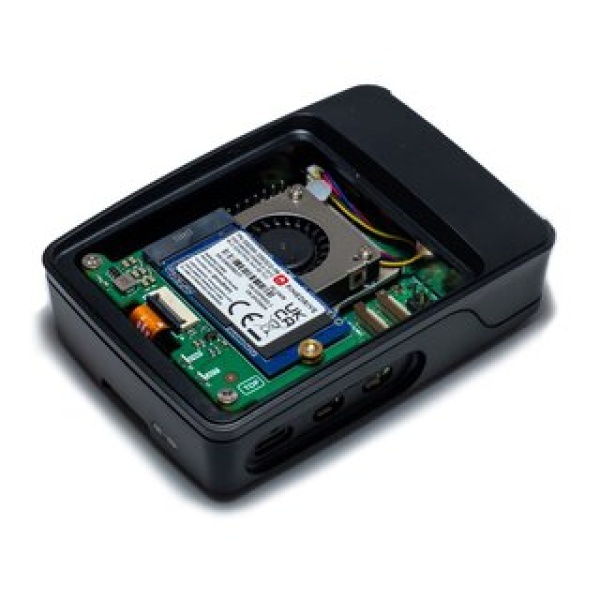

Supporting both M.2 2230 and M.2 2242 form factor devices with an M-Key connection, you can install an NVMe SSD and enjoy the much faster storage over the Raspberry Pi’s PCIe Gen 2/3 connection or go nuts and install that crazy M.2 adaptor board you just found in the depths of the internet.

One of the best things about the tiny footprint of the Nano is that the fan on the Active Cooler is unobstructed and can pull in all the air it needs to keep things under control. If you need your GPIO headers, don’t fret, these are also freely accessible!

Each HatDrive! Nano comes with one of our impedance controlled, itty bitty 25mm PCIe FPC (Flexible Printed Circuit) Cable to connect to your Single Board Computer and all the screws needed to either assemble the HAT in the official case, or out of it.
