The Raspberry Pi Peak Kit for Beginners includes all the essential components to start your electronic project creation journey with Respberry! In order to simplify learning and provide diversity, the kit has a variety of components, allowing the realization of educational automation projects.
Its manual in digital format has the step by step since the installation of Arduino IDE among others, such as MicroPython, programming using blocks with Piper Make, and the configuration to use its Raspberry Pi Pico. It has the information of the connections of the pins for technical guidance, in addition to practical projects with the available components, and the best, with all available codes, assisting in the learning and execution of projects.
Some Manual Projects:
1. Motion Sensor:
– Create a full motion sensor with Raspberry Pi Pico and the PIR sensor.
– Enable an audible alarm to detect intruders or notify you of movement in your home.
2. 2. Control a Servo with potentiometer: an elementary joystick
– Control a servo motor using a potentiometer, such as an elemental joystick.
3. Monitor at room temperature with Raspberry:
– Use a thermistor to measure the ambient temperature in real time.
4. 4. Display the temperature in real time with an I2C display:
– Display information collected from your temperature sensor in a practical and visual way in an I2C.
5. . 5. Create lighting effects with RGB LED tape:
– Control an addressable RBG LED tape and customize your lighting!
– Combine with the infrared proximity sensor to disable and activate without using physical contact.
Awaken your creativity and dive into the electronics universe with the Raspberry Pi Peak Kit!
FEATURES:

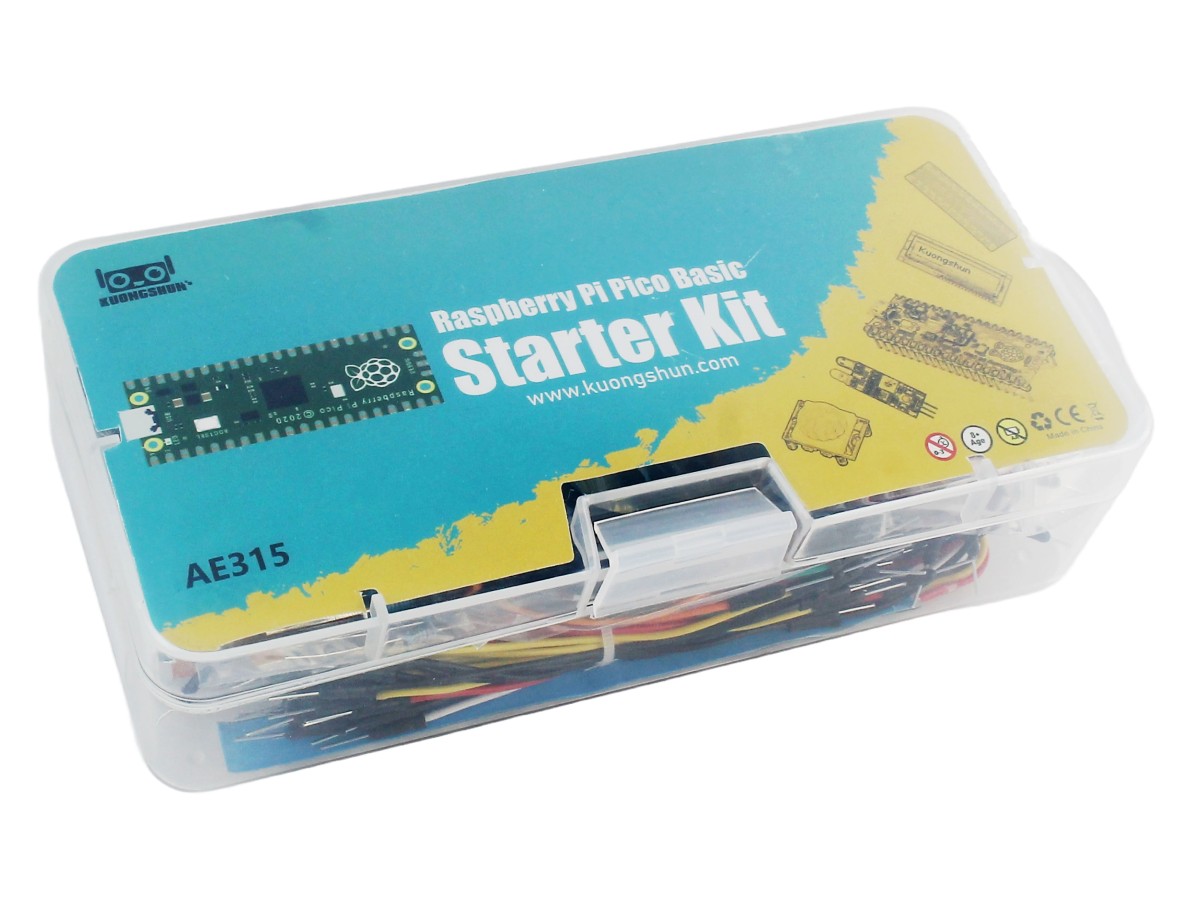

– Raspberry Pi Peak basic kit for beginners – AE315 Kuongshun;
– Enables to develop more than 5 projects with tutorial included;
– Kit consisting of sensors, modules, jumpers, resistors, etc;
– Set with 82 Pieces;
– Accompanies a protoboard;
– Accompanies jumpers for prototyping;
– Can be used for other purposes;
– Excellent cost-benefit ratio;
– Accompanied Raspberry Pi Pico with welded pins;
– Manual ESP32 Basic AE315 Kit (English).
SPECIFICATIONS: SPECIFICATIONS: : SPEC

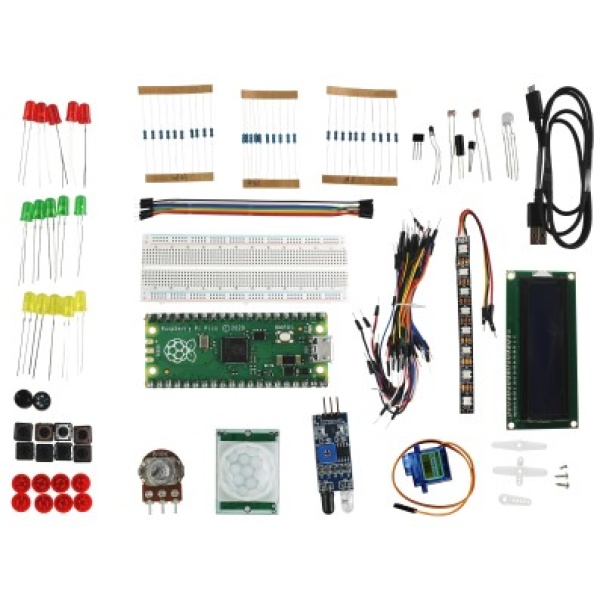

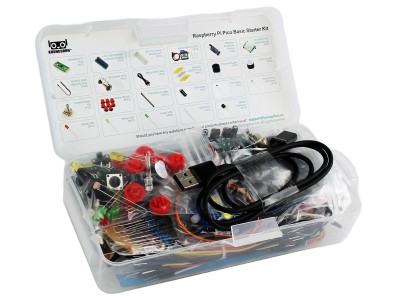

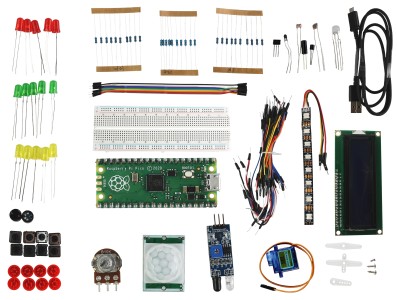

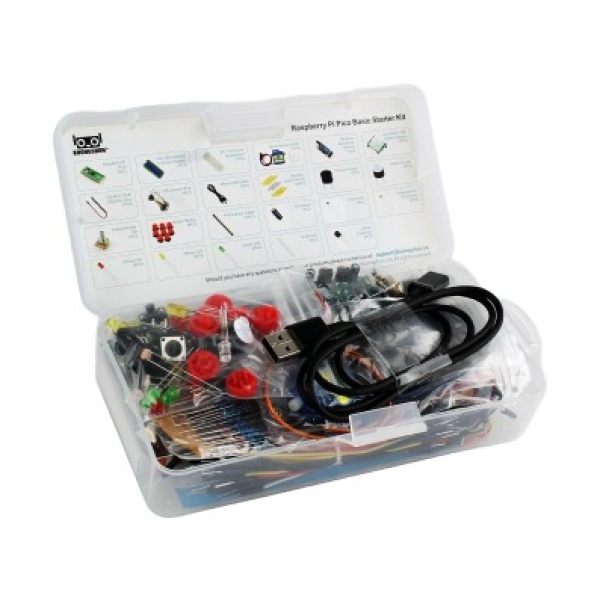

– Model: AE315;
– Total Amount of Parts: 82;
– They follow:
– 1 x Raspberry Pi Peak with welded pins;
– 1 x 16×2 I2C LCD Display with Blue Background;
– 1 x Protoboard 830 points for project assembly;
– 1 x Infrared Reflective Obstacle Sensor HW-201 with Sensitivity Adjustment;
– 1 x HC-SR501 Movement PIR Sensor 100o;
– 1 x Micro Servo Motor 9g SG90 180o;
– 1 x 10K Linear Potentiometer with Stretch Axis;
– 1 x Passive Buzzer 5V PCI 12mm;
– 1 x Active Buzzer 3V Continuous PCI 12mm
– 1 x Micro USB cable ?1m;
– 8 x Push Button 12mm with Colorful Covers;
– 1 x RGB 5V WS2812 Black Led Tape;
– 10 x Jumper Female-Macho 20cm;
– 10 x Jumper Male-Macho 10 to 20cm;
– 1 x Sensor Tilt / Inclination Sensor SW-520D;
– 2 x LDR Luminosity Sensor Module;
– 1 x NTC 10K Thermistor;
– 2 x Transistor S8050 NPN;
– 1 x Red LED 5mm Diffused – Kit with 5 units;
– 1 x Yellow LED 5mm Diffused – Kit with 5 units;
– 1 x LED Green 5mm Diffused – Kit with 5 units;
– 1 x High Brightness RGB LED 5mm – Common Negative;
– Case dimensions: (LxWxH) 18.4 x 9 x 4.5cm;
– Total Kit Weight: 321g.
