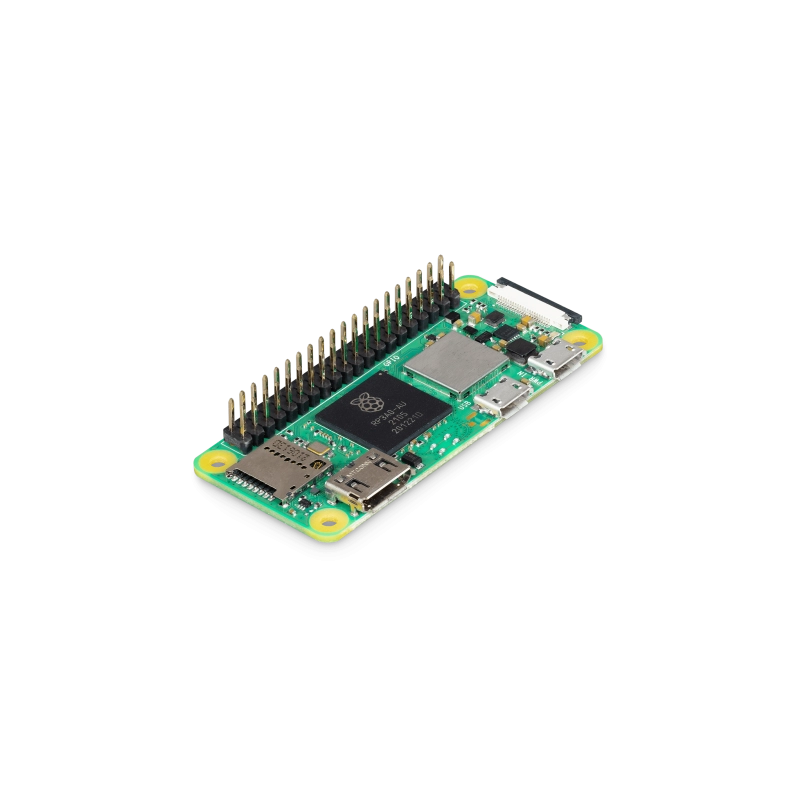

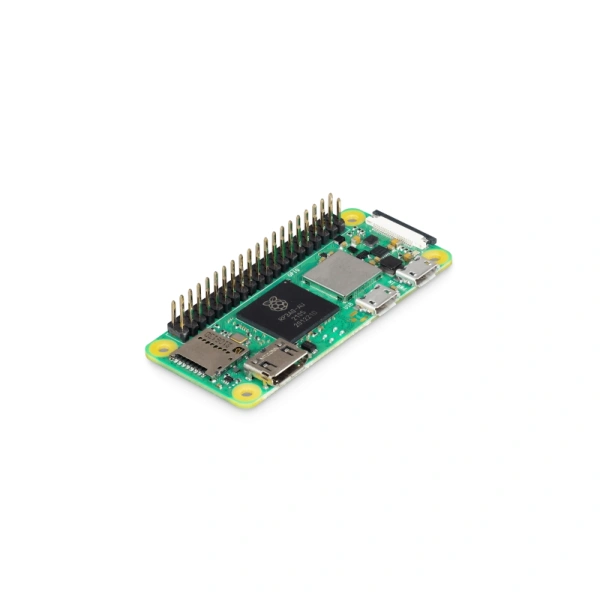

Raspberry Pi Zero 2 WH

• Dimensions: 65mm × 30mm

• Processor: Broadcom BCM2710A1, 64-bit quad-core SoC (Arm Cortex-A53 @ 1GHz)

• RAM: 512 MB LPDDR2

• Connectivity:
  • Wi-fi 2.4 GHz IEEE 802.11b/g/n
  • Bluetooth 4.2, Bluetooth Low Energy (BLE)
  • 1x Micro-USB 2.0 On-The-Go (OTG)
  • 1x Mini-HDMI
  • 1x Micro-USB for power supply
  • 40-pin GPIO I/O socket – HAT compatible
  • MicroSD card slot
  • CSI-2 camera connector

• Multimedia :
  • H.264, MPEG-4 decode (1080p30)
  • H.264 encode (1080p30)
  • OpenGL ES 1.1, 2.0 graphics

• Composite video pins and reset via text solder points

• Input voltage: 5V DC – 2.5A

• Operating temperature : -20°C to +70°C

• Production life: The Raspberry Pi Zero 2 W will remain in production until at least January 2028

Safety Instructions

To avoid malfunction or damage to this product, please observe the following:

• Do not expose to water or moisture, or place on a conductive surface while in operation.

• Do not expose to heat from any source; the Raspberry Pi Zero 2 W is designed for reliable operation at normal ambient temperatures.

• Use care when handling to avoid mechanical or electrical damage to the circuit board and connectors.

• When powered, avoid handling the circuit board or hold it only by the edges to minimize the risk of ESD damage.

Warnings

• Any external power supply used with Raspberry Pi Zero 2 W must comply with the regulations and standards applicable in the country of intended use.

• This product should be used in a well-ventilated environment, and if used inside an enclosure, the enclosure should not be covered.

• When in use, this product should be placed on a stable, flat, non-conductive surface and should not be touched by conductive parts.

• Connecting incompatible devices to the Raspberry Pi Zero 2 W may affect compliance, result in damage to the device and invalidate the warranty.

• All peripherals used with this product must comply with the standards of the country of use and be marked accordingly to ensure that safety and performance requirements are met.
  These items include, but are not limited to, keyboards, monitors and mice when used with the Raspberry Pi Zero 2 W.

• Cables and connectors for all peripherals used with this product must be sufficiently insulated to ensure that the relevant safety requirements are met.
